Zarges Tanker Ladder

SKU: 591000

Price range: £8,816.86 through £12,029.86

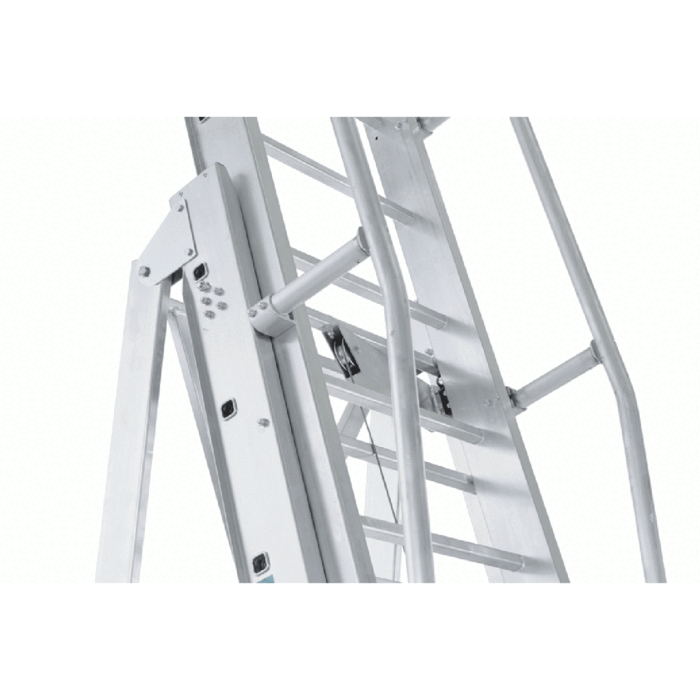

  • 2-part winch operated industrial aluminium ladder, exit platform heights adjustable between 2.77m – 4.10m
  • Standard 4 wheel alloy chassis with rigid stabilisers
  • 300mm deep top exit platform
  • Octagonal top guardrail unit 1500mm x 1500mm
More Info
Categories:

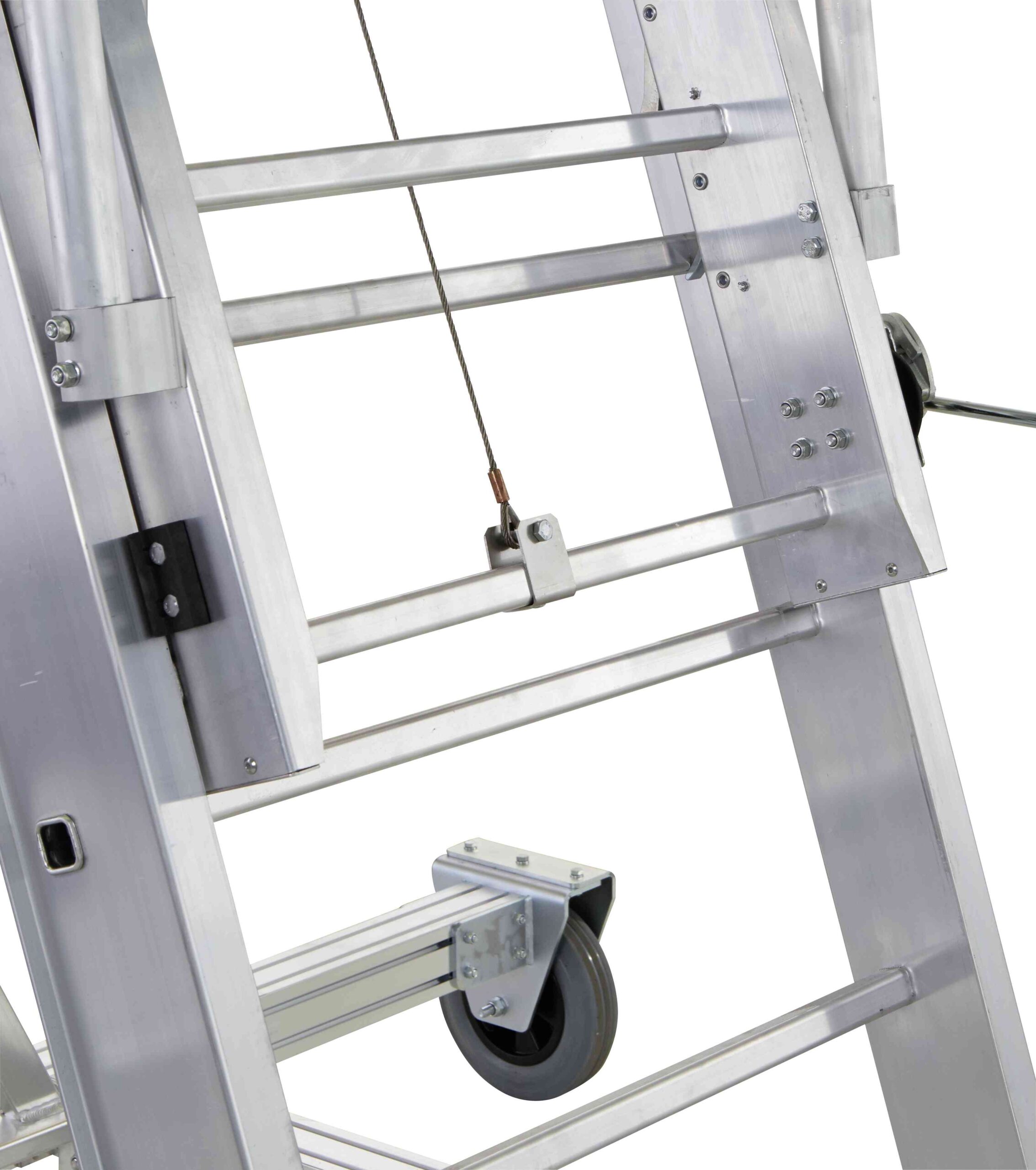

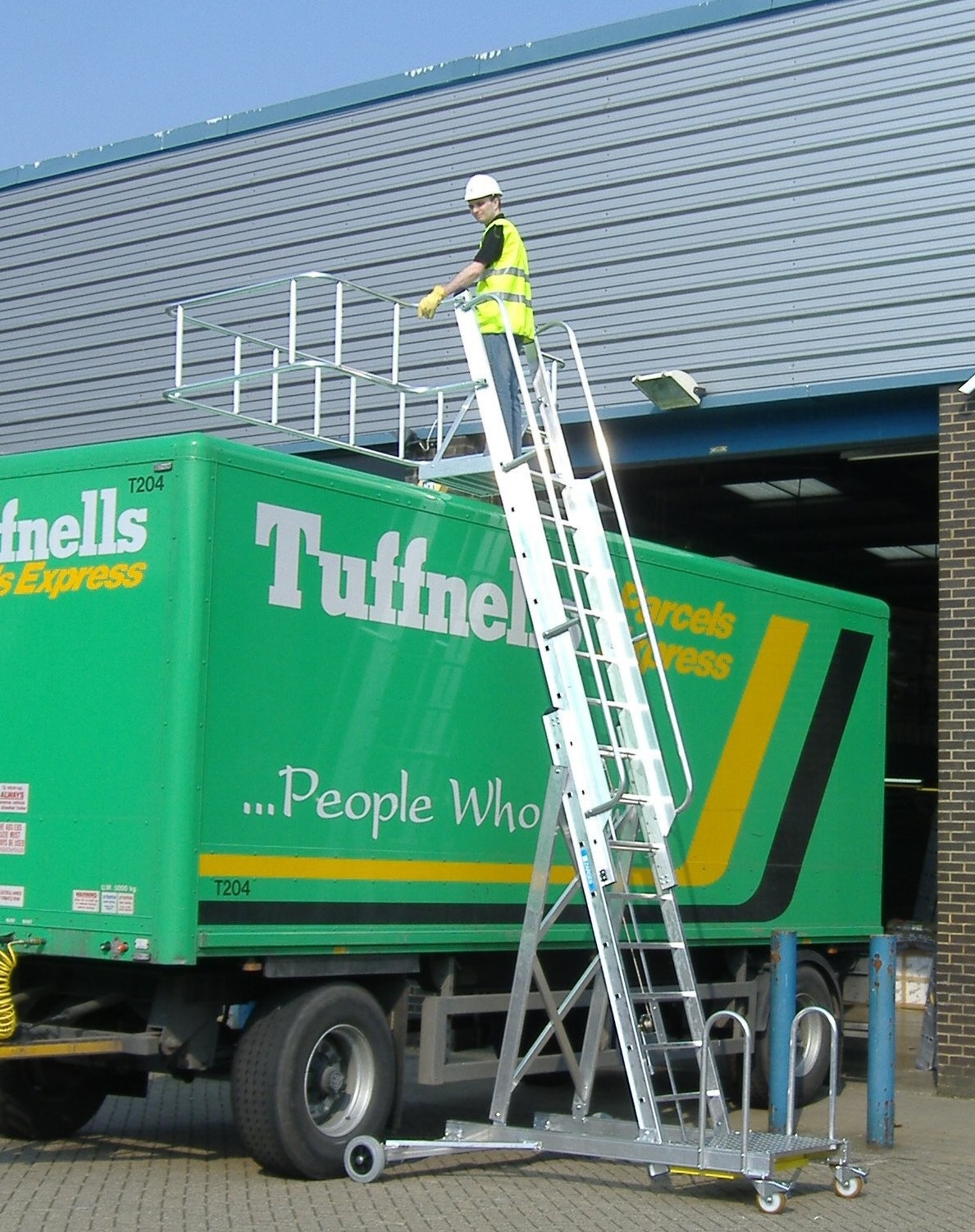

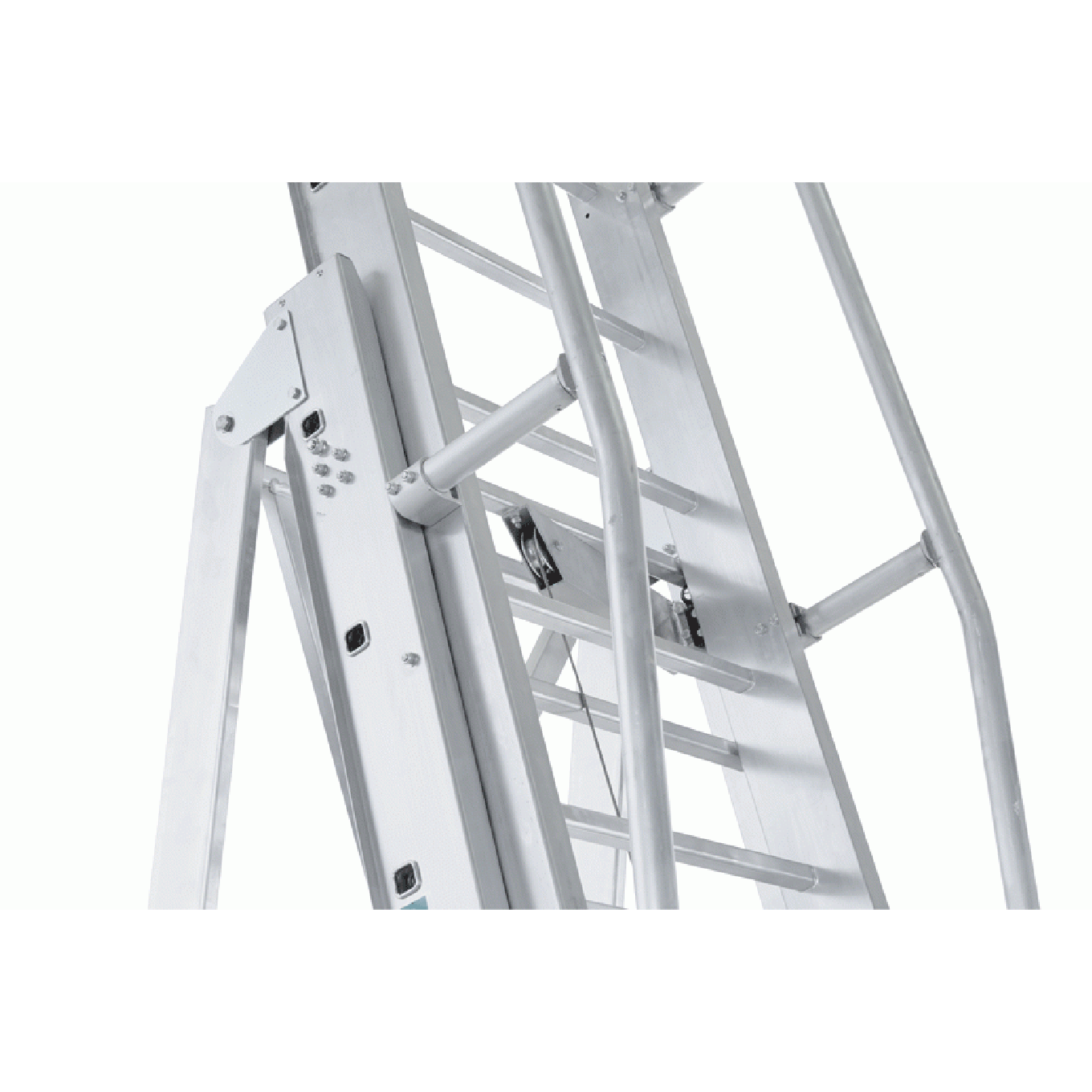

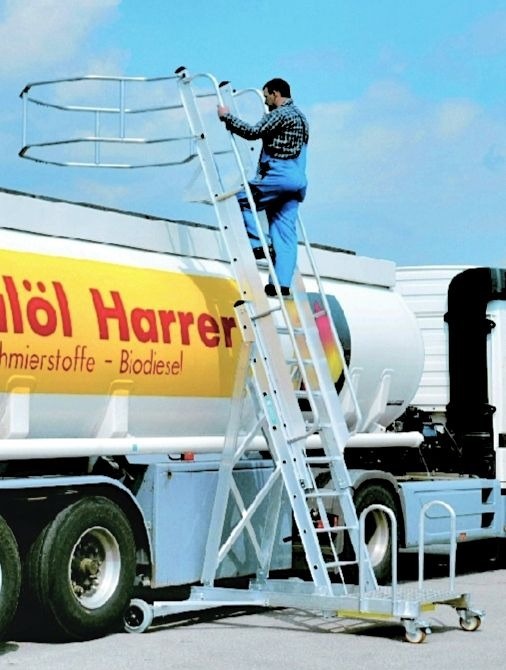

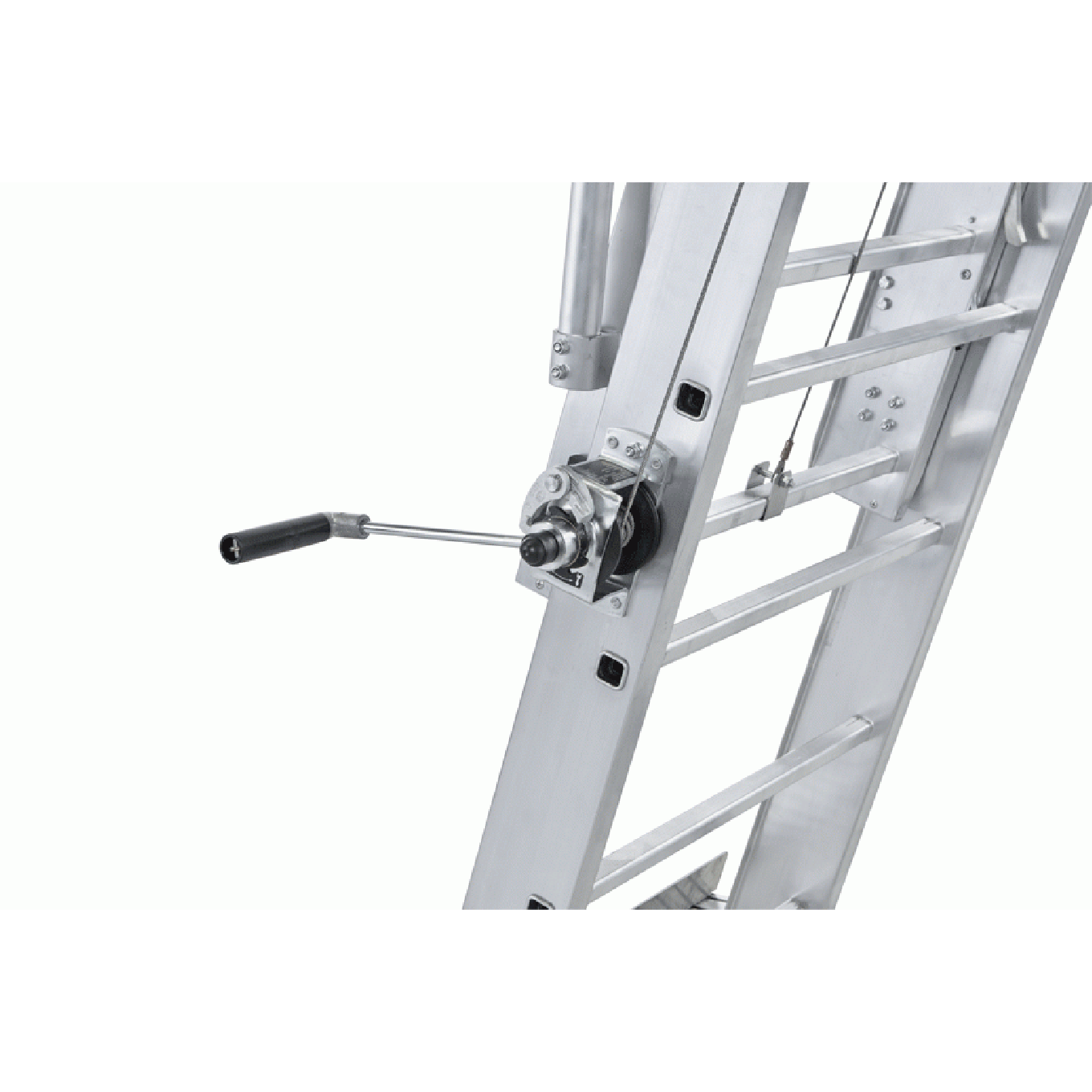

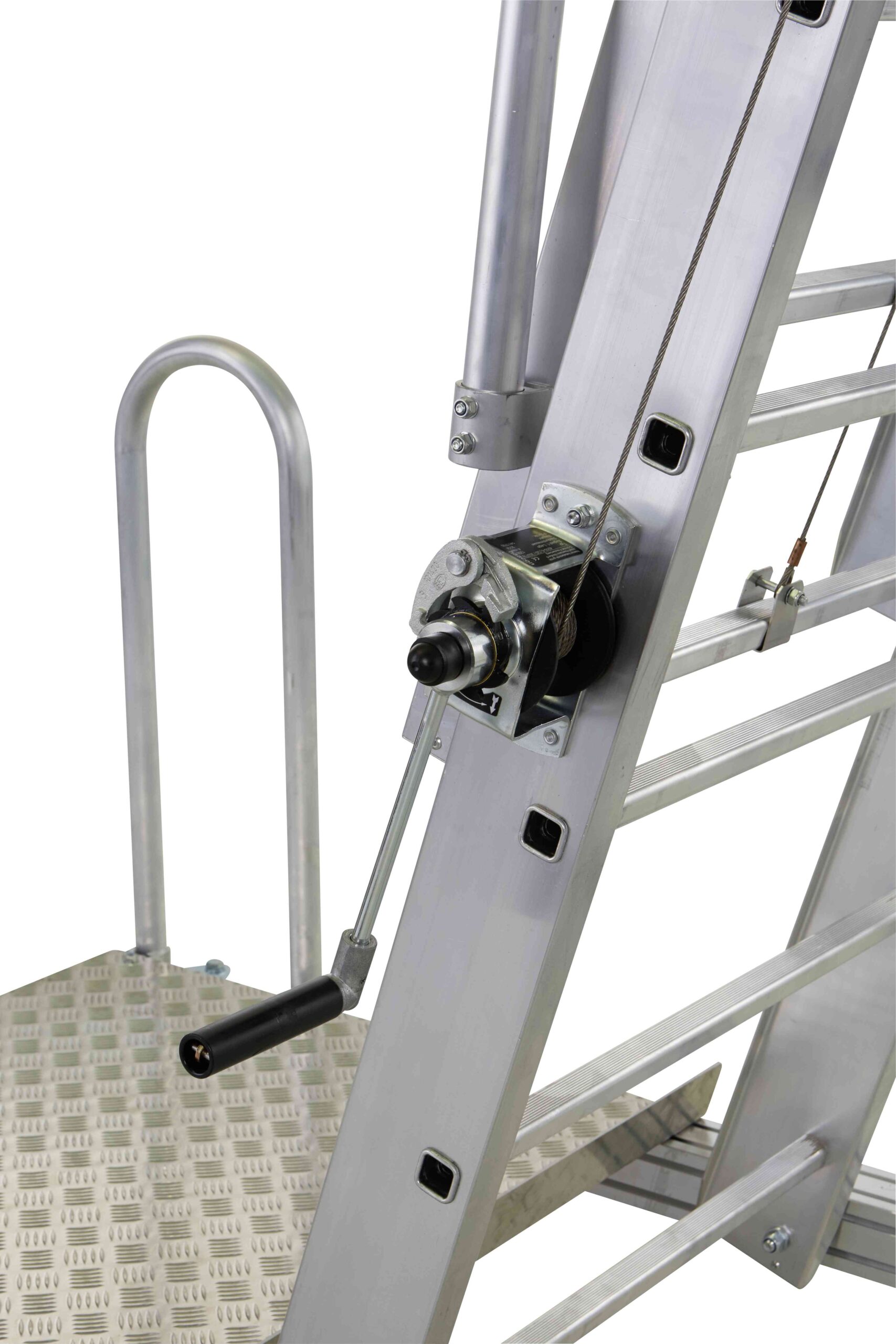

Zarges Tanker Ladders are specifically designed for accessing,servicing, repairing, filling and cleaning road tankers or any large vehicle with a roof designed to take the weight of a person.. These mobile  ladders are used primarily on road tankers in a range of different industries, this includes; the food industry, the chemical and petrochemical industries and on rail vehicles. This mobile access ladder comprises a two part extension ladder with a maximum load of 150 kg, which is conveniently height adjustable via a side-mounted winch from ground level. The ladder is totally self supporting and includes counterbalancing weights mounted beneath the entry platform, the ladder need never touch the vehicle and so will not damage bodywork or livery. The basic design can be configured or modified to suit your individual requirements as each tanker ladder is built to order. The base price shown above includes the following …



  • 2-part winch operated industrial aluminium ladder, exit platform heights adjustable between 2.77m – 4.10m
  • Standard 4 wheel alloy chassis with rigid stabilisers
  • 300mm deep top exit platform
  • Octagonal top guardrail unit 1500mm x 1500mm

This configuration can be modified from the options available when adding the unit to your shopping cart above. Alternatively, give our sales team a call on 0300 303 22 99 and we will be pleased to talk you through the options or configure a completely bespoke unit to your specifications.



Options

Choose from ‘Available options’ at the top of this page before adding the tanker ladder to your cart.

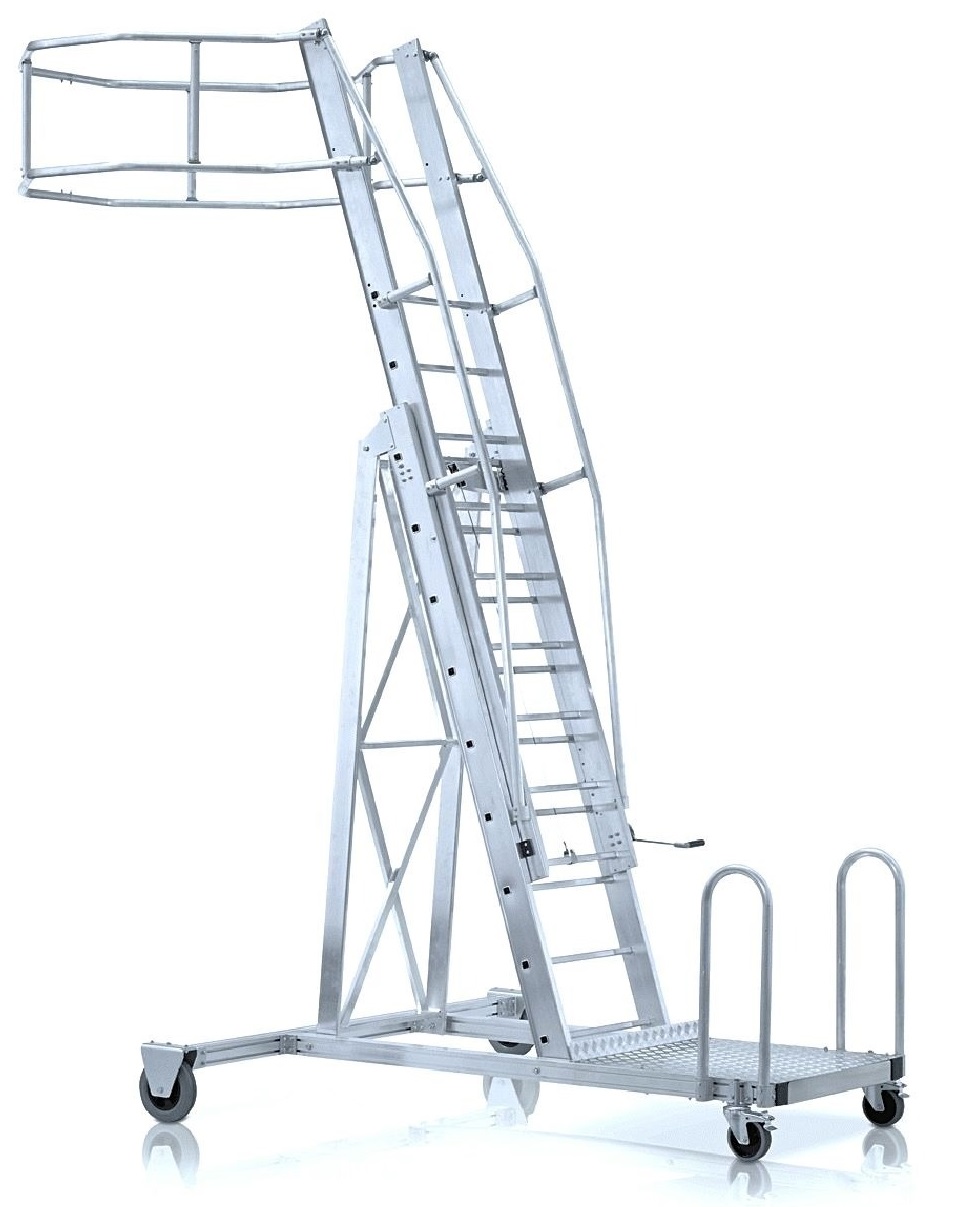

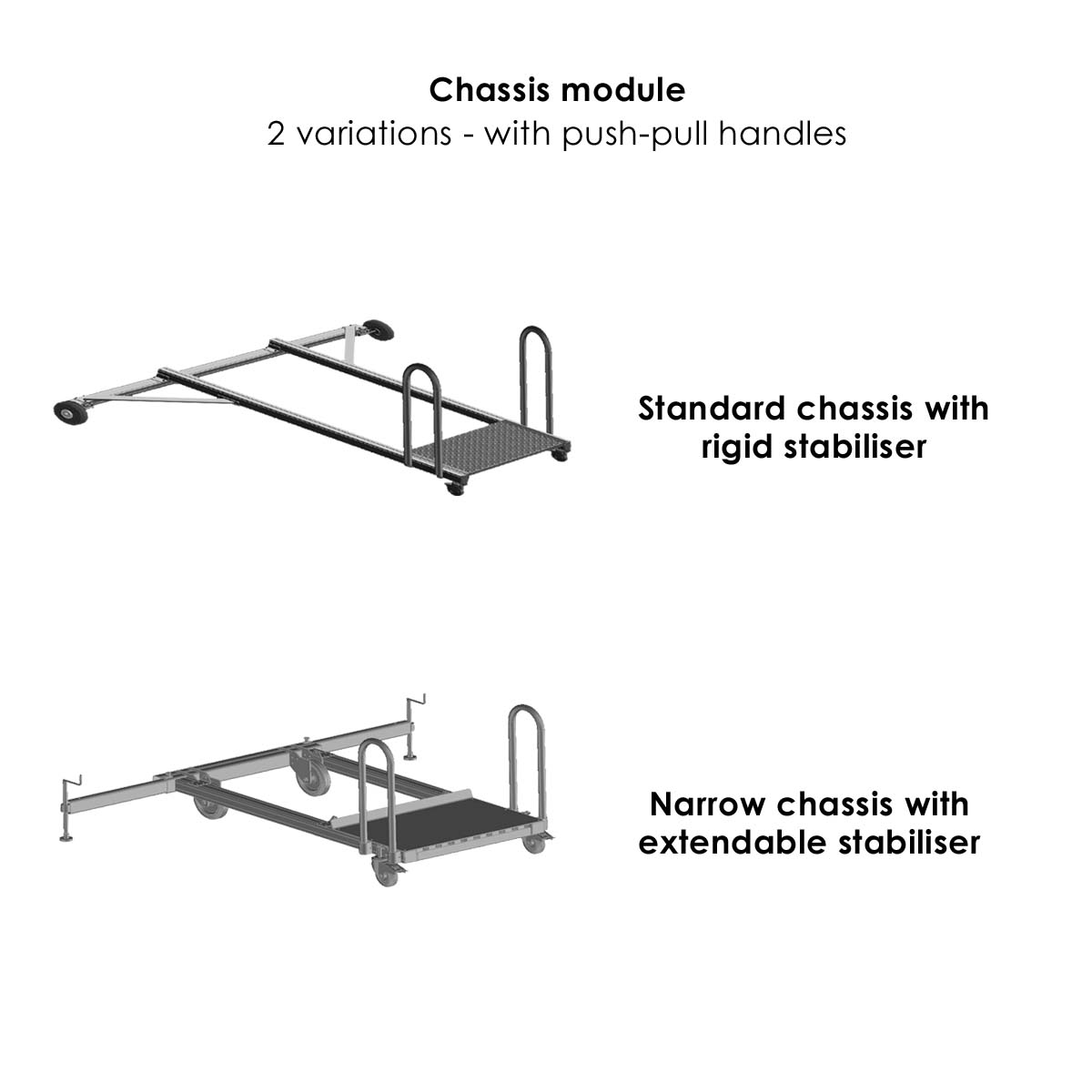

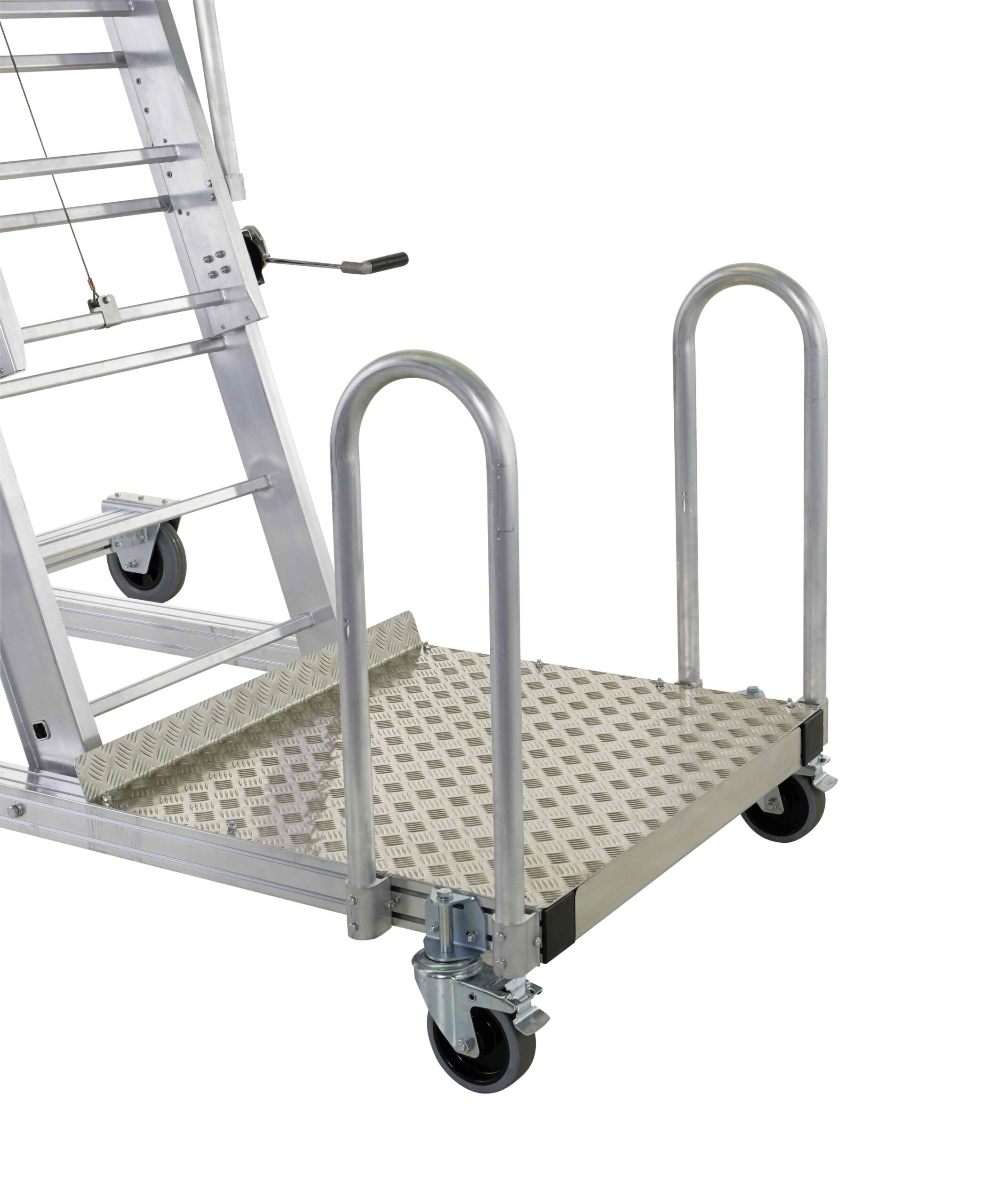

  • Standard chassis with fixed stabilisers, 2 braked swivel and 2 fixed wheels (as pictured)
  • Narrow chassis with adjustable extending stabilisers with 200mm leveling screw jacks
  • Choice of 300mm, 600mm or 800mm long exit platform at top of ladder
  • Optional double pole platform exit barrier

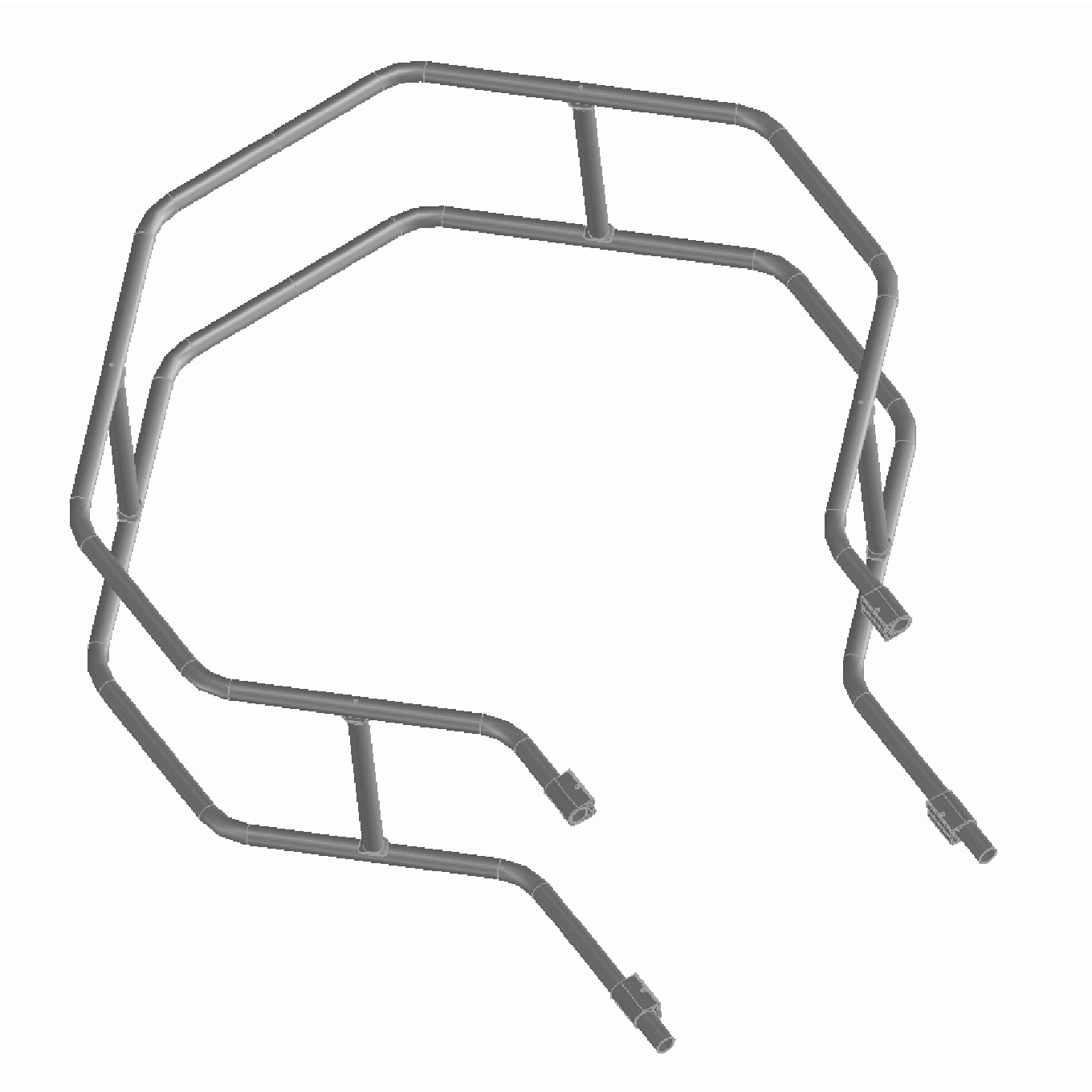

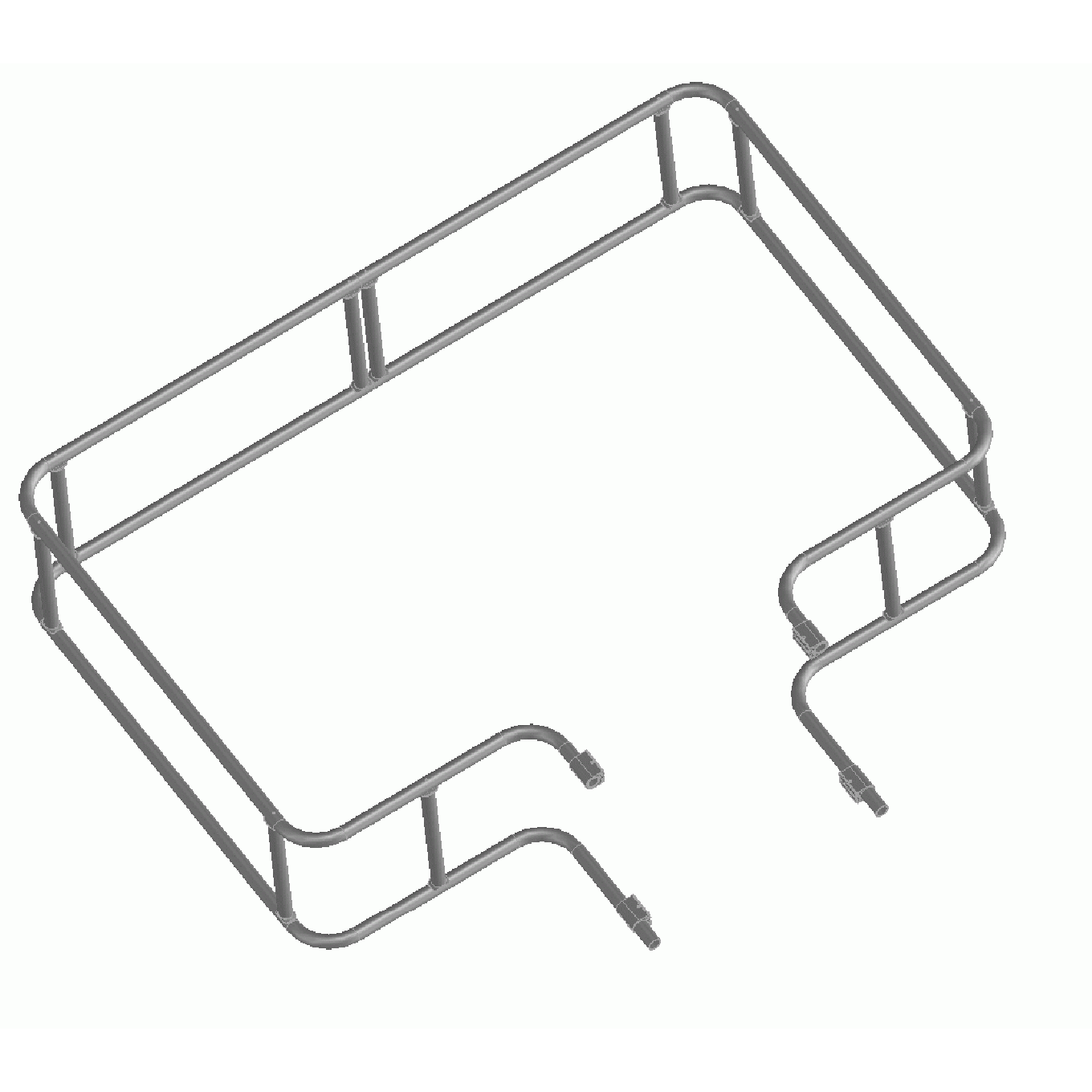

  • Choice of 1500mm dia. octagonal or 2050mm x 1500mm rectangular guardrail unit
  • Anti-static kit for volatile environments





Specification

 Model  Zarges Tanker Ladder
 Code  591000
 Minimum exit platform height  2.77m  (adjustable in 274mm increments)
 Maximum exit platform height  4.10m
 Internal width of ladder   600mm
 Overall width of stabilisers (either chassis)  2350mm
 Material  Aluminium
 Overall height when retracted  3.82m
 Maximum Permissible load  150kg
 Weight  Approx 108 kg
 Warranty  10 years



Zarges tanker ladders are built to order and hence take a little longer to deliver.. typically 4 to 6 weeks
